AaLadin 16 Series Stationary / Portable Pressure Washers
With a Pressure Rating ranging from 1600 to 3000, and a Flow Output ranging from 4 to 5, these washers are designed for power, convenience, and dependability.
In this series, you'll have the option of Portable or Stationary Pressure Washer Systems. Whether you need equipment for fixed-based operations or those requiring mobility, this series will provide options to choose the apparatus best suited for the task

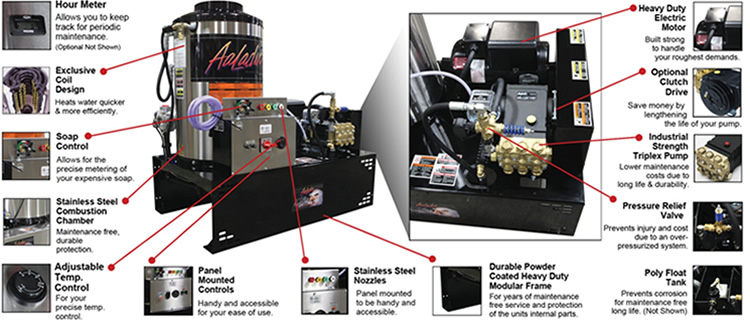

FEATURES BREAKOUT - ILLUSTRATED
{tab=FEATURES}
SS Model Features:
- Well Balanced for Easy Maneuverability
- Powder Coated Automotive Quality Finish
- Rear Wheel Locking Brake System
- Built-In Hose Reel Socket
- Heavy Duty Electrical Cord & Hose Storage
- Built-In Gun Cup
- Stainless Steel Belt Guard
- Heavy Duty Electro Plated Fittings
- Exclusive High Strength Plastic Manifold
- Quick Couple Plumbing Connections
- Heavy Duty Rotary Power Switch
- Heating Coil: ASTM A53 Schedule 80 Pipe
- Quick Coil Access
- Fuel Oil Solenoid
- Water Separating Fuel Filter
- In-Line Fuel Shutoff
- Trigger Gun Control
- 36” Insulated Wand
- 0°, 15°, 25° & 40° Quick Coupled Stainless Steel Nozzles
- 3/8” x 50’ High Pressure Hose
- Tri-Lingual Decals
SL: all the SS plus:
- Time Delay Shutdown
- Hour Meter
- Magnetic Starter
SC: all the SS plus:
- Clutch Drive
{tab=SPECIFICATIONS}
| GENERAL | ELECTRICAL | BURNER SYSTEM | DIMENSION/WEIGHT | |||||||||||
| MODEL | TYPE | GPM | PSI | HP | DRIVE | VOLT | AMP | Ph. | BTU | STACK SIZE | L | W | H | lbs |
|
14-423 |
SS/SL/SC |
4 |
2300 |
6/7.5/7.5 |
Belt/Clutch |
230/230/440 |
30/20/15 |
1/3/3 |
275,000 |
Exchange |
37.5” |
29” |
44.5” |
520 |
|
14-430 |
SS/SL/SC |
4 |
3000 |
8/7.5/7.5 |
Belt/Clutch |
230/230/440 |
40/20/15 |
1/3/3 |
275,000 |
Exchange |
37.5” |
29” |
44.5” |
|
|
14-530 |
SS/SL/SC |
5 |
3000 |
10 |
Belt/Clutch |
230 |
50 |
1 |
299,000 |
Exchange |
37.5” |
29” |
44.5” |
570 |
