AaLadin 5000 Series Stationary Pressure Washer
With a Pressure Rating ranging from 1600 to 3000, and a Flow Output ranging from 4 to 5, these washers are designed for power, convenience, and dependability.
In this series, you'll have the option of Portable or Stationary Pressure Washer Systems. Whether you need equipment for fixed-based operations or those requiring mobility, this series will provide options to choose the apparatus best suited for the task

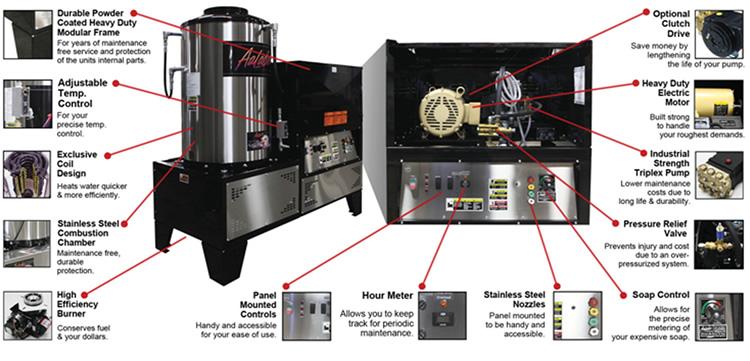

FEATURES BREAKOUT - ILLUSTRATED
{tab=FEATURES}
- ETL Listed
- Heavy Duty Legs
- Stainless Steel Compartment Covers
- Stainless Steel Combustion Chamber
- Coil Constructed of ASTM A53 Schedule 80 Steel Pipe
- Fuel Efficient Combustion Chamber
- Adjustable Temp Control w/High Limit Protection
- Watertight Ignition Transformer
- Pressure Relief Valve
- Trigger Gun Control
- Stainless Steel Float Tank
- Low Water Shut-Off Protection
- Wire Braid Discharge Hose
- Automatic Shutdown Timer
- Watertight Electrical Panel
- Fuel/Water Separator (Oil Fired)
- Electronic Ignition
- Soap Solenoid
- Cad Cell Flame Sensor (Oil Fired Units)
- Draft Diverter
{tab=SPECIFICATIONS}
| GENERAL | ELECTRICAL | BURNER SYSTEM | DIMENSION/WEIGHT | ||||||||||
| MODEL | GPM | PSI | HP | DRIVE | VOLT | AMP | Ph. | BTU LP/NG | STACK SIZE | L | W | H | lbs |
|
5403 |
4 |
300 |
2 |
Belt |
115 |
15 |
1 |
726,000/770,000 |
10”/12” |
64” |
28” |
58” |
1030 |
|
5518 |
5 |
1800 |
6 |
Belt |
230 |
30/20 |
1/3 |
487,000/545,000 |
10”/12” |
64” |
28” |
58” |
1005 |
|
5523 |
5 |
2300 |
8/7.5 |
Belt |
230 |
30/25 |
1/3 |
487,000/545,000 |
10”/12” |
64” |
28” |
58” |
1060 |
|
5530 |
5 |
3000 |
10 |
Belt |
230 |
30 |
3 |
487,000/545,000 |
10”/12” |
64” |
28” |
58” |
1070 |
|
5615 |
6 |
1500 |
6 |
Belt |
230 |
30/20 |
1/3 |
585,000/670,000 |
10”/12” |
64” |
28” |
58” |
1060 |
|
5622 |
6 |
2200 |
10 |
Belt |
230 |
30 |
3 |
585,000/670,000 |
10”/12” |
64” |
28” |
58” |
1050 |
|
5630 |
6 |
3000 |
15 |
Belt |
230 |
35 |
3 |
585,000/670,000 |
10”/12” |
64” |
28” |
58” |
1000 |
