AaLadin 14HE Series HE (High Efficiency) ECO-Green Pressure Washer
Tests have proven that AaLadin's Exclusive Patent Pending Exchange Technology uses 30% less fuel than standard hot water pressure washers, saving you as much as $1,685 per year or more!
- Not only does the AaLadin Eco-Green Line of Equipment Use Less Fuel, but it also:
- Reduces carbon monoxide released into the air by 47% over the standard models
- Reduces nitrogen monoxide released into the air by 39% over standard models
- Reduces nitrogen oxide released into the air by 39% over the standard models

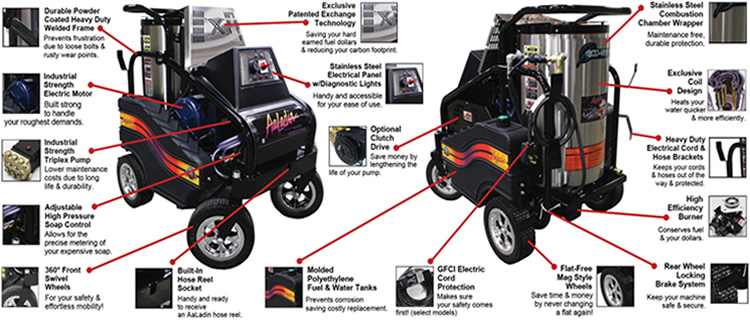

FEATURES BREAKOUT - ILLUSTRATED
{tab=FEATURES}
SS Model Features:
- Well Balanced Design For Easy Maneuverability
- Electrical Cord & Hose
- Built-In Gun Cup
- Stainless Steel Belt Guard
- Heavy Duty Electro Plated Fittings
- Exclusive High Strength Nylon Manifold
- Quick Couple Plumbing Connections
- Heavy Duty Rotary Power Switch
- Panel Mount Adjustable Temp. Control
- High Limit Temp. Control
- ASTM A53 Schedule 80 Steel Heating Coil
- Exclusive Heat Chamber Insulation System
- Quick Coil Access
- Fuel Oil Solenoid
- Water Separating Fuel Filter
- In-Line Fuel Shutoff
- Trigger Gun Control w/ 36” Insulated Wand
- 0°, 15°, 25°, & 40° Quick Coupled Stainless Steel Nozzles
- 3/8” x 50’ High Pressure Hose
- Tri-Lingual Decals
SL - all the SS plus:
- Time Delay Shutdown
- Hour Meter
- Magnetic Starter
SC - all the SL plus:
- Clutch Drive
{tab=SPECIFICATIONS}
| GENERAL | ELECTRICAL | BURNER SYSTEM | DIMENSION/WEIGHT | |||||||||||
| MODEL | TYPE | GPM | PSI | HP | DRIVE | VOLT | AMP | Ph. | BTU | STACK SIZE | L | W | H | lbs |
|
14-423 |
SS/SL/SC |
4 |
2300 |
6/7.5/7.5 |
Belt/Clutch |
230/230/440 |
30/20/15 |
1/3/3 |
275,000 |
Exchange |
37.5” |
29” |
44.5” |
520 |
|
14-430 |
SS/SL/SC |
4 |
3000 |
8/7.5/7.5 |
Belt/Clutch |
230/230/440 |
40/20/15 |
1/3/3 |
275,000 |
Exchange |
37.5” |
29” |
44.5” |
|
|
14-530 |
SS/SL/SC |
5 |
3000 |
10 |
Belt/Clutch |
230 |
50 |
1 |
299,000 |
Exchange |
37.5” |
29” |
44.5” |
570 |
{tab=MORE INFORMATION}
{module Series 14HE Pressure Washer}
{/tabs}
